Kawasaki GPZ 500/EX500 1988 - RMSTATOR Heavy Duty Flywheel Rotor

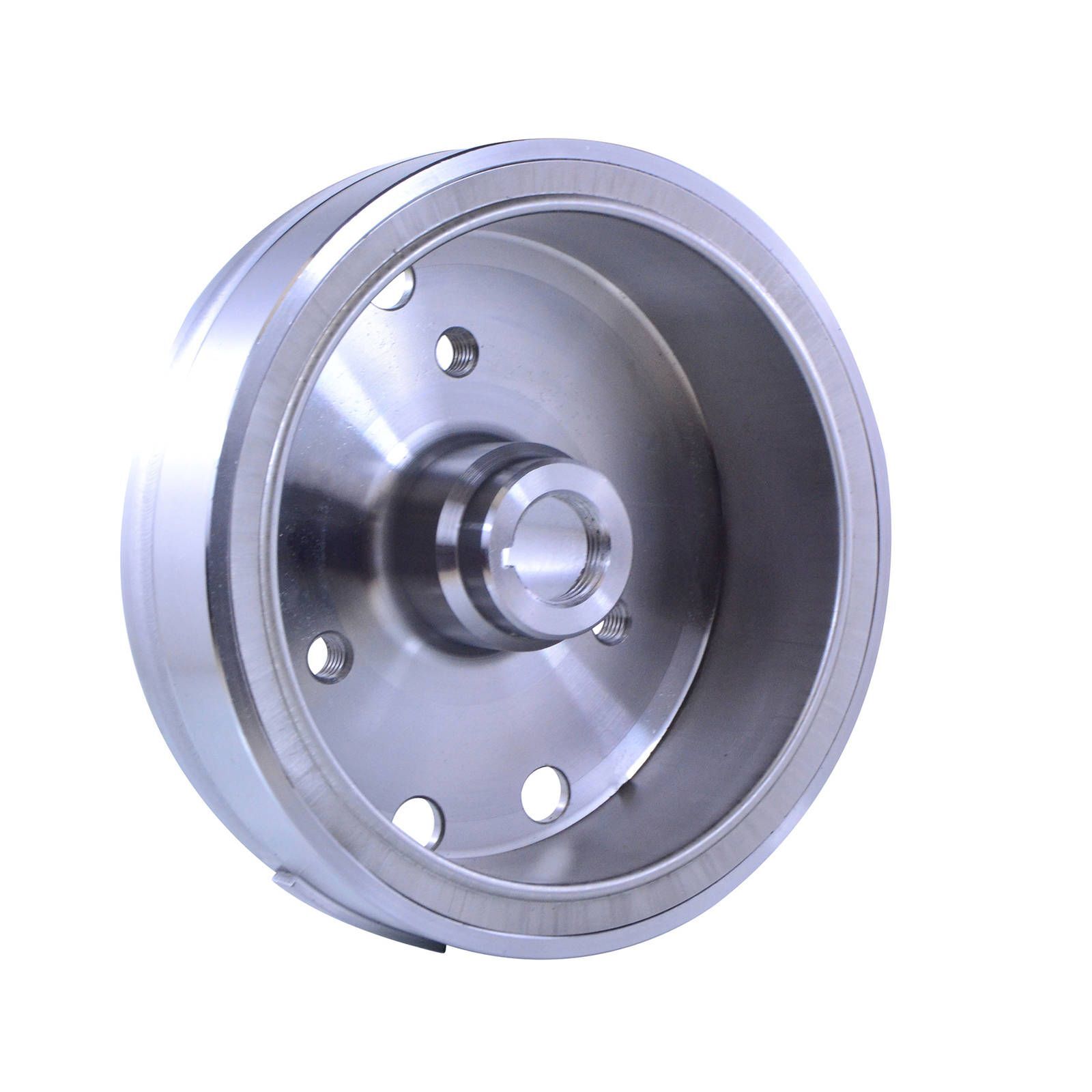

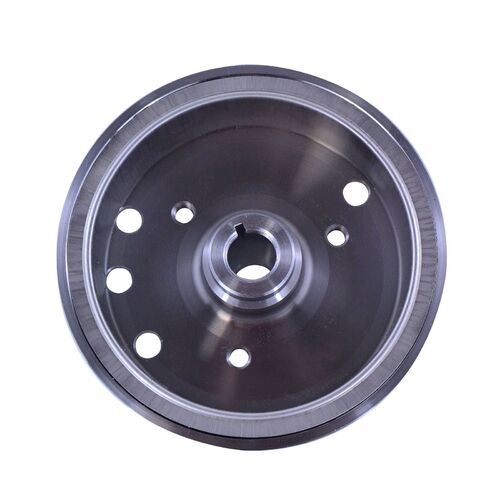

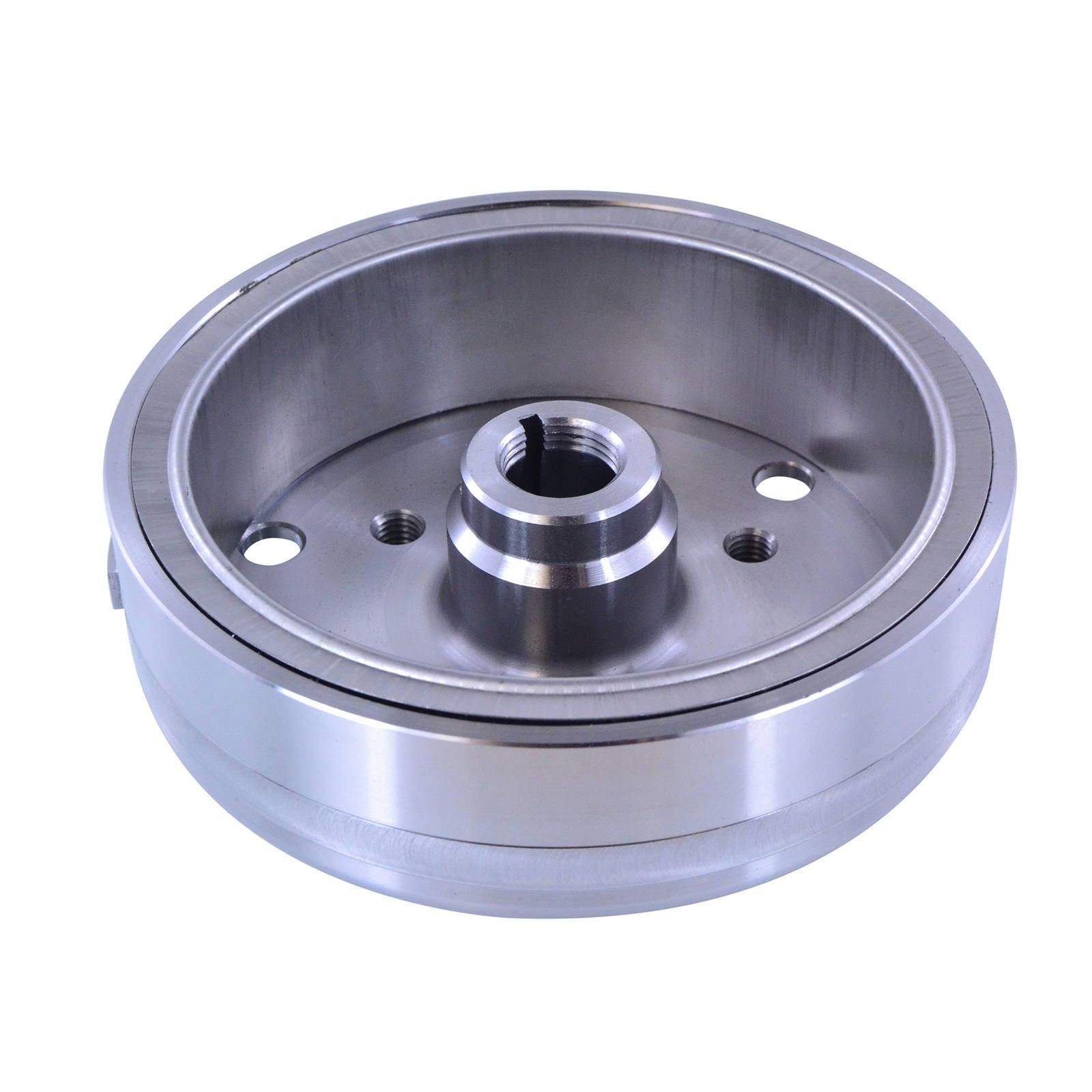

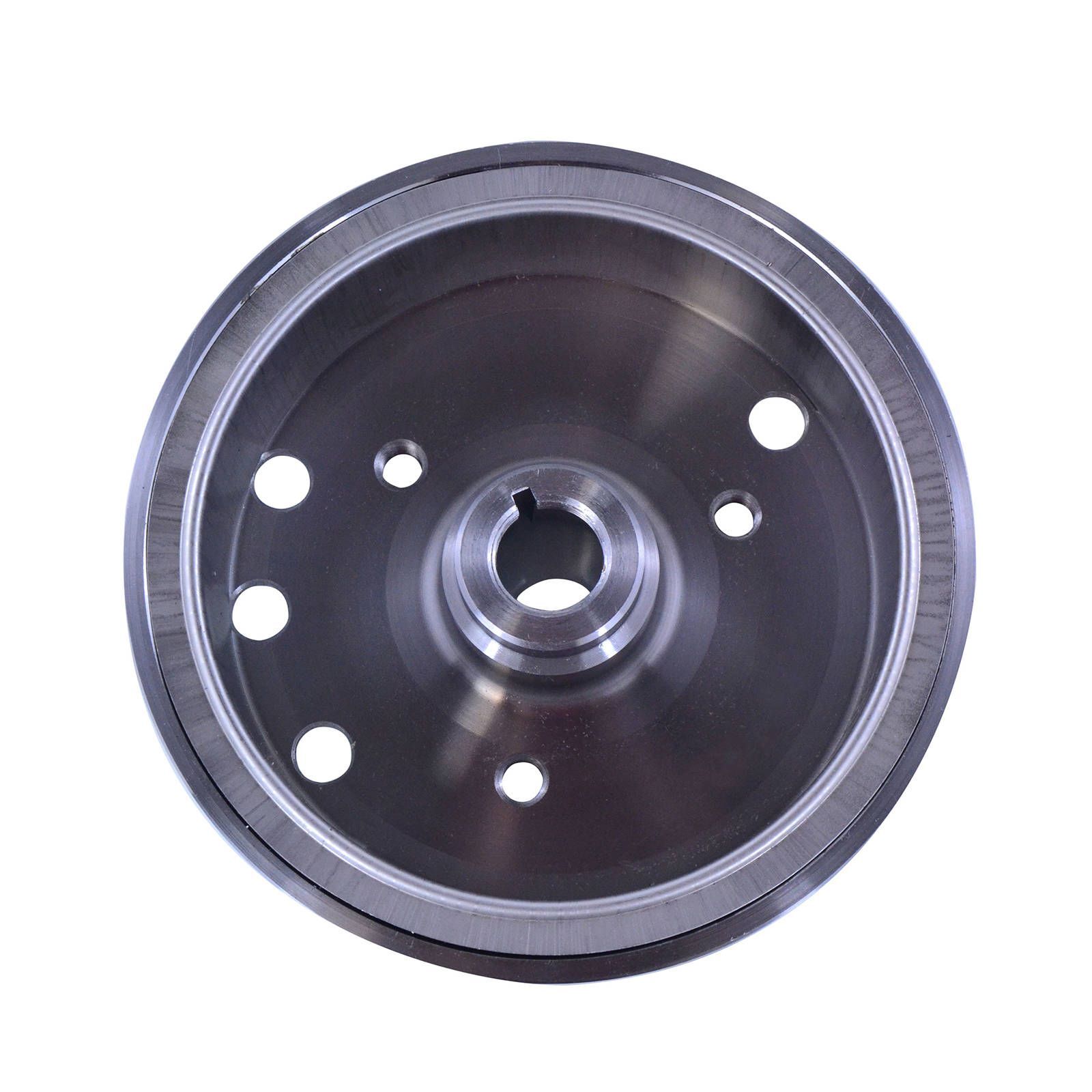

RMSTATOR HEAVY DUTY FLYWHEEL ROTOR

New RMSTATOR heavy-duty flywheel rotor for Yamaha Motorcycles is a well-priced solution to problems with the OEM flywheel, and an excellent alternative to all the mechanical troubles you can encounter with a repair.

FEATURES:

• Built to OEM size Fits precisely in your ride: install it and forget it.
• Improved epoxy Uses high-temperature epoxy that is stronger than OEM, eliminating the possibility of magnet detachment.
• High-grade steel capping Prevents heat and friction from degrading the epoxy attaching the magnets. Though extremely unlikely, if a magnet did ever come loose, it would remain in the sleeve preventing contact with the stator.
• Precise balancing Eliminates crankshaft vibrations for longer engine longevity.
• Shop with confidence Two years warranty. All products are tested.

Don't waste time with temporary solutions, and start fixing your ride like a pro!

DIMENSIONS:

• Exterior Diameter: 129 mm
• Interior Diameter: 106 mm
• Interior Diameter Center Housing: 16 mm
• Exterior Diameter Center Housing: 25 mm
• Thickness (exterior): 42 mm
• Thickness (interior): 33 mm

PLEASE NOTE:

Before attempting to start your Kawasaki adjusting the air gap is necessary. Rotate the flywheel so the raised node is lined up with the pick up/pulser coil and adjust as close as possible but no less than 0.010".

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Fitment Details

• Kawasaki GPZ500S EX500 1988
