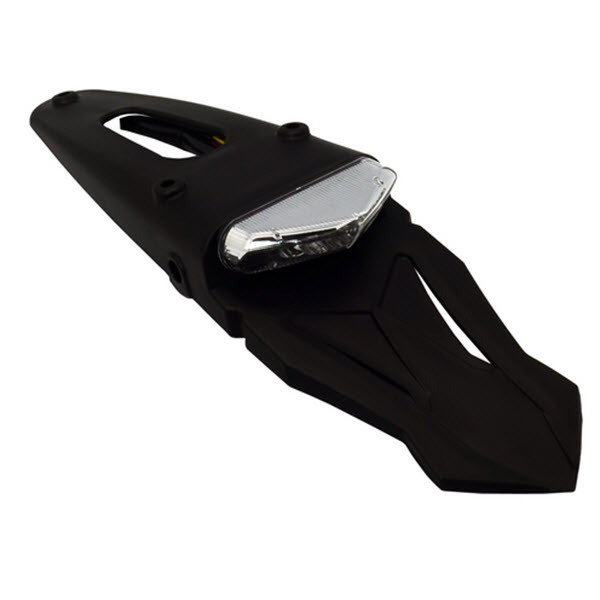

Kawasaki KDX200 - Enduro Led Stop Tail Light Indicator Rego Plate Holder

Universal Type Enduro Motorcycle LED Tail Light Indicator Assembly

• Universal Type 12v Led Stop Tail Light Plate Holder Assembly
• Built-In LED Indicators (within the Tail Light)
• Clear Lense with LED for Licence Plate
• Bullet plug connectors
• Pre-Drilled Holes for additional blinkers to be mounted
• Please note - some early model bike lights may not work properly with LED lights

Fitting Instructions:

• Drill holes in rear fender to suit the holes in tail light assembly
• Mount assembly with bolts and lock nuts (bolts not included)
• You may need to place some spacers between the fender and tail light assemby depending on the shape of your rear fender or subframe (spacers are not included)
• Use the existing bullet connectors or fit original type electrical connectors. You may need longer wires and different connectors if you want it to plug into your original wiring harness. (Genuine type connectors are not included).
• Drill holes where required to fit number plate (bolts not included)
• Works best with an MX style rear fender

Wiring:

• Black Wire - Earth
• Green Wire - Left Indicator
• Yellow Wire - Tail Light
• Blue Wire - Right Indicator
• Red Wire - Stop Light

Important Note:

• This is a universal type assembly, not specific to any particular bike. It needs slight modification in order for it to mount. It does not simply plug in and bolt on. Please check the above fitting instructions before purchase. We recommend that you get assistance from a tradesman if you don't have a drill and are not handy with wiring.

Fitment Details

• Kawasaki KDX200 1983
• Kawasaki KDX200 1984
• Kawasaki KDX200 1985
• Kawasaki KDX200 1986
• Kawasaki KDX200 1987
• Kawasaki KDX200 1988
• Kawasaki KDX200 1989
• Kawasaki KDX200 1990
• Kawasaki KDX200 1991
• Kawasaki KDX200 1992
• Kawasaki KDX200 1993
• Kawasaki KDX200 1994
• Kawasaki KDX200 1995
• Kawasaki KDX200 1996
• Kawasaki KDX200 1997
• Kawasaki KDX200 1998
• Kawasaki KDX200 1999
• Kawasaki KDX200 2000
• Kawasaki KDX200 2001
• Kawasaki KDX200 2002
• Kawasaki KDX200 2003
