Ram Motorcycle X-Grip Phone Mount W/ Brake/Clutch Reservoir Base

RAM X-GRIP LARGE PHONE MOUNT W/ BRAKE/CLUTCH RESERVOIR BASE

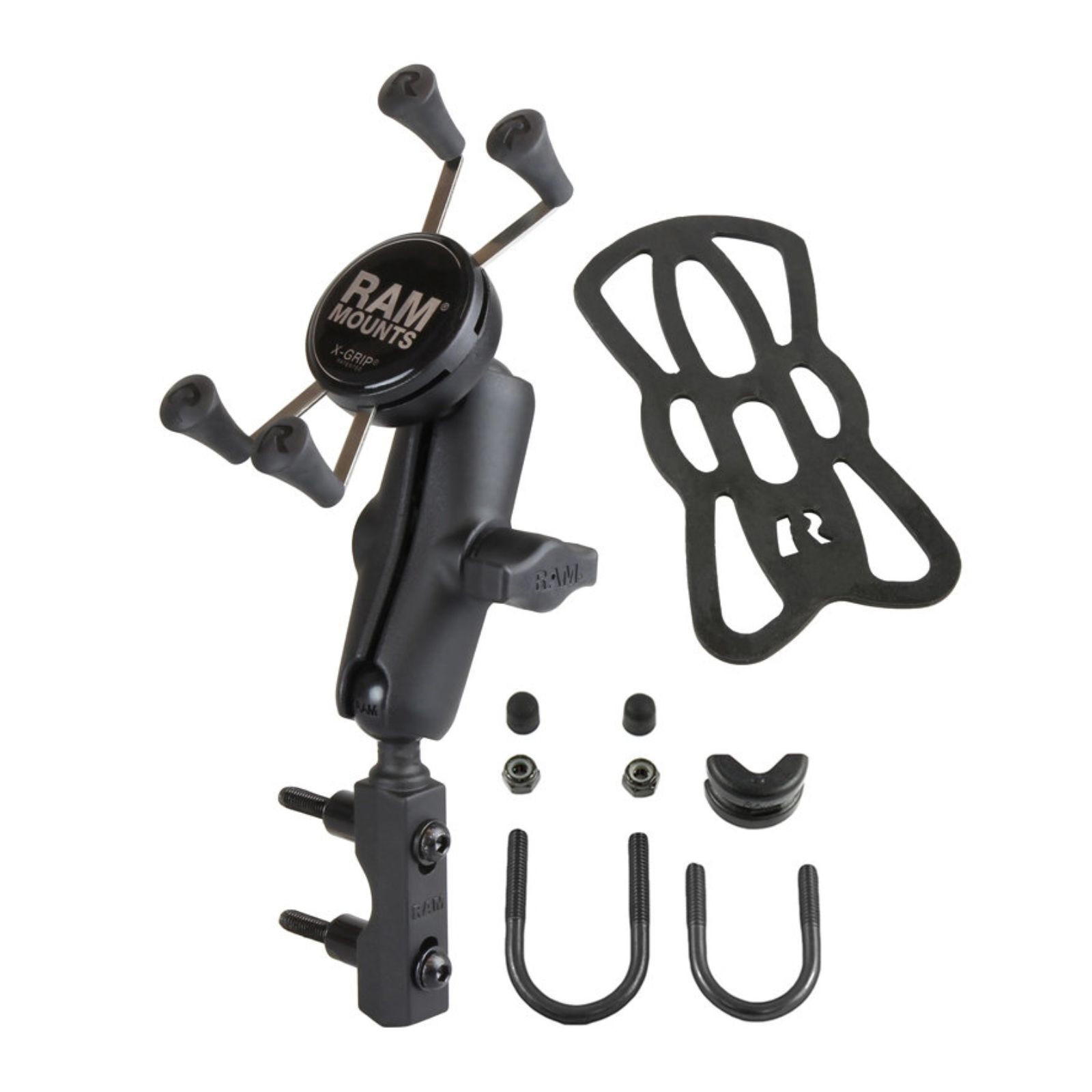

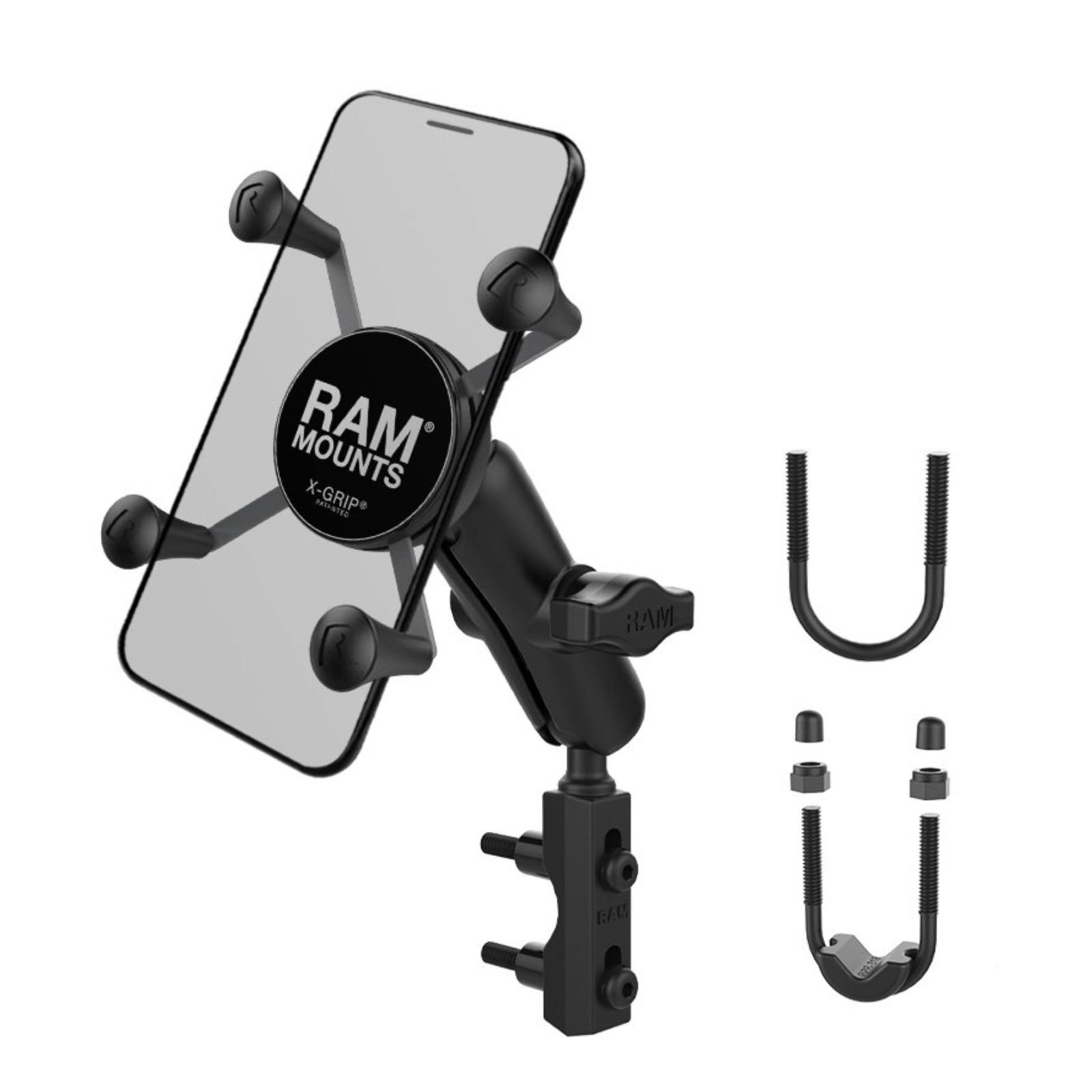

The RAM-B-174-UN7U consists of hardware for mounting to either brake/clutch reservoirs and rails that are 0.5" to 1.25" in diameter, a double socket arm, and a universal X-Grip^® cell phone cradle. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both ends of the socket arm; this with a twist of the arm knob, allows you to move the X-Grip^® mount to your optimum viewing position.

FEATURES:

• The mounting hardware for brake/clutch reservoirs includes both standard and metric mounting bolts.
• The included X-Grip^® cradle has a clean and clever four-leg design that sports great holding power without hiding your phone behind foam pads and plastic.
• The spring-loaded X-Grip^® cradle expands and contracts, allowing for a perfect custom fit for your cell phone.
• The perfect complement to the modern sleek interior of today's vehicles, the RAM X-Grip^® is the cell phone cradle evolved.
• The X-Grip^® includes a device tether recommended for outdoor applications.
• The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

SPECS:

• CLAMP RANGE: 0.5" (12.7mm) - 1.25" (31.7mm) diameter
• HOLDER DIMENSIONS: Width Range: 1.875" (47.6mm) - 3.25" (82.5mm), Depth Range: 0.875" (22.2mm) max
• SOCKET-TO-SOCKET LENGTH: 3" (76.2mm)
• BALL SIZE: B Size (1", 25.4mm)

KIT INCLUDES:

• x1 Optional Tether
• x1 Glue Tube for Rubber Caps
• x2 M6 x 55mm Hex Bolts
• x2 #1/4-20 x 2" Hex Bolts
• x2 1/4"-20 x 2.5" Hex Bolts
• x2 1/2" Spacers
• x2 1/4" Split Lock Washers
• x1 1/4"-20 U-Bolt for .5" - 1" Rails
• x1 1/4"-20 U-Bolt for 1" - 1.25" Rails
• x2 1/4"-20 Nylock Nuts
• x2 Rubber Caps
• x1 U-Bolt Spacer

PLEASE NOTE: Online Only
