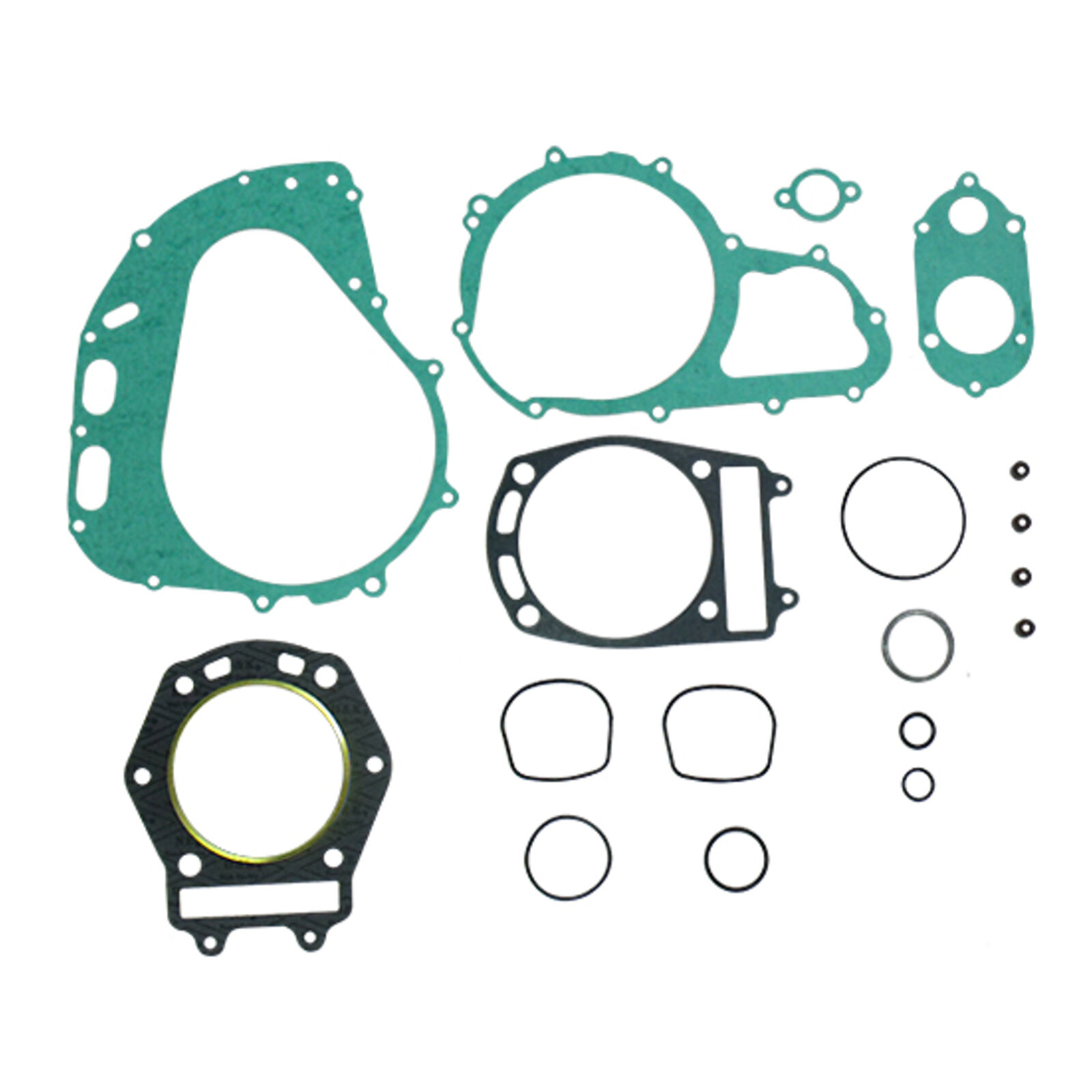

Suzuki DR650SE 1996 - 2024 Namura Complete Full Gasket Set Engine Rebuild

Namura Complete Full Gasket Set Engine Rebuild

Namura gaskets are manufactured from materials specifically chosen for each individual application. From top-end sets to complete kits for a full teardown you can be sure that Namura gaskets are up to the task at hand.

Namura gaskets are manufactured to OE specs which means no trimming or fitment issues. The materials are explicitly selected for their temperature oil fuel and coolant-resistant qualities as well as tested using ASTM standards. Each design is evaluated against rigid quality-control standards to ensure each set meets or exceeds OE performance. Clutch gaskets are available for certain applications.

AF Gasket Material

Made from a high-quality non-asbestos cellulose fibre composite bonded with Nitrile Butadiene rubber (NBR) this gasket material is ideal for clutch covers oil pumps coolant systems and other engine case applications. It maintains excellent tensile strength sealing integrity and torque retention—even in continuous temperatures exceeding 300ºF.

Engineered for durability it offers reliable performance in high-stress environments where fluid resistance and heat tolerance are essential.

Steel and MLS (Multi-Layer Steel) Gaskets

No other gasket is more crucial than your head gasket. The seal between your cylinder and cylinder head is exposed to more heat and extreme pressures than anywhere else in your engine. In order to match these extreme conditions Namura offers one of the most advanced head gaskets on the market. Constructed from multiple layers of stainless steel to resist corrosion and erosive chemicals commonly found in your engine then using an on-off pattern our MLS gaskets are coated/embossed with a Fluoroelastomer-based rubber to tightly seal the metallic mating surfaces. By doing this they can withstand the sheering forces created by the two surfaces (cylinder head and cylinder). This coating also enhances the bond between the gasket material and the imperfect surfaces commonly found when rebuilding your engine.

Seals and O-rings

NBR Fluoroviton and Silicone are selected for each application based upon the following characteristics: Temperature Resistance Abrasion Resistance Chemical Resistance and their Aniline Point. A Teflon coating is applied to certain applications to prolong performance life.

Fitment Details

• Suzuki DR650SE 1996
• Suzuki DR650SE 1997
• Suzuki DR650SE 1998
• Suzuki DR650SE 1999
• Suzuki DR650SE 2000
• Suzuki DR650SE 2001
• Suzuki DR650SE 2002
• Suzuki DR650SE 2003
• Suzuki DR650SE 2004
• Suzuki DR650SE 2005
• Suzuki DR650SE 2006
• Suzuki DR650SE 2007
• Suzuki DR650SE 2008
• Suzuki DR650SE 2009
• Suzuki DR650SE 2010
• Suzuki DR650SE 2011
• Suzuki DR650SE 2012
• Suzuki DR650SE 2013
• Suzuki DR650SE 2014
• Suzuki DR650SE 2015
• Suzuki DR650SE 2016
• Suzuki DR650SE 2017
• Suzuki DR650SE 2018
• Suzuki DR650SE 2019
• Suzuki DR650SE 2020
• Suzuki DR650SE 2021
• Suzuki DR650SE 2022
• Suzuki DR650SE 2023
