Notify me when back in stock

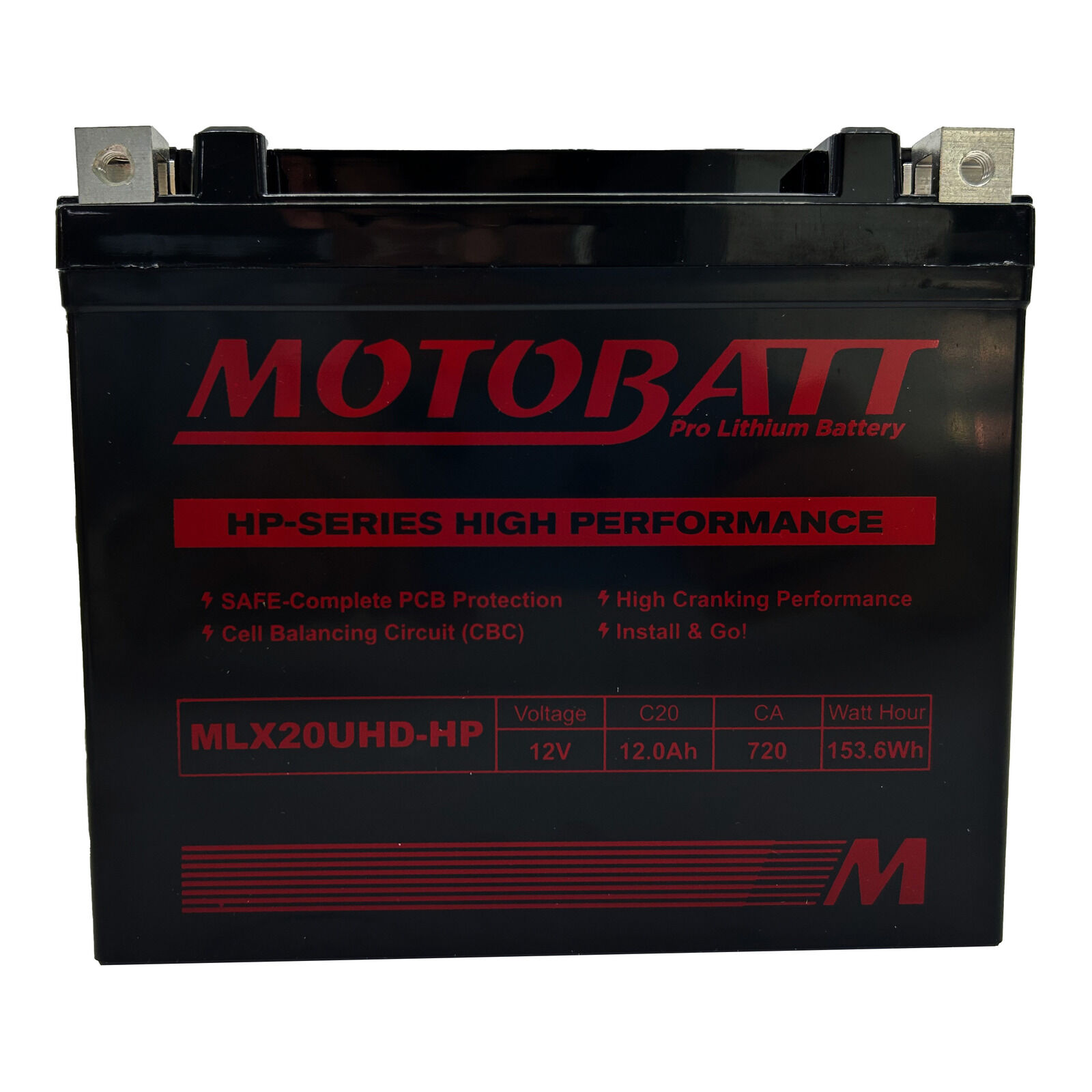

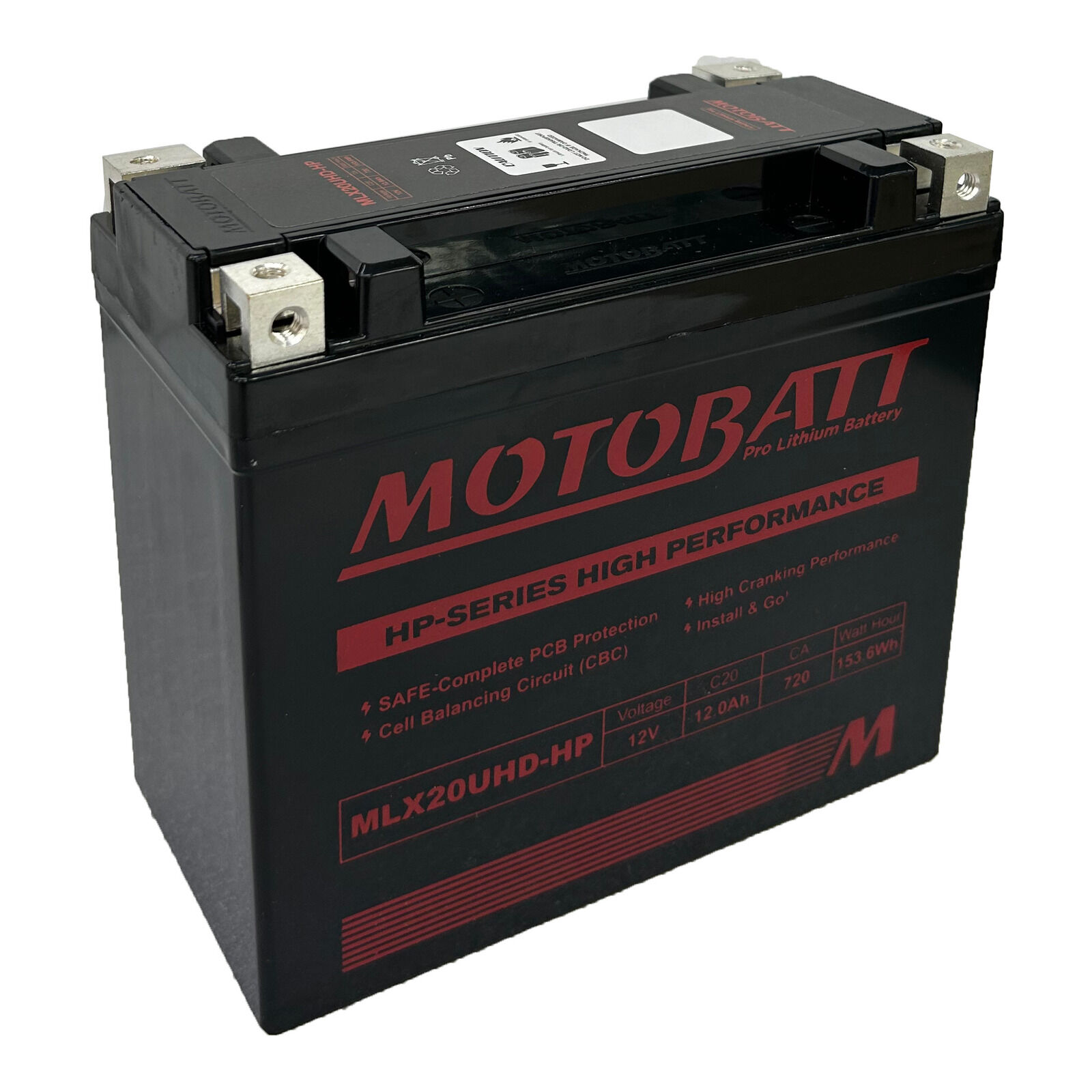

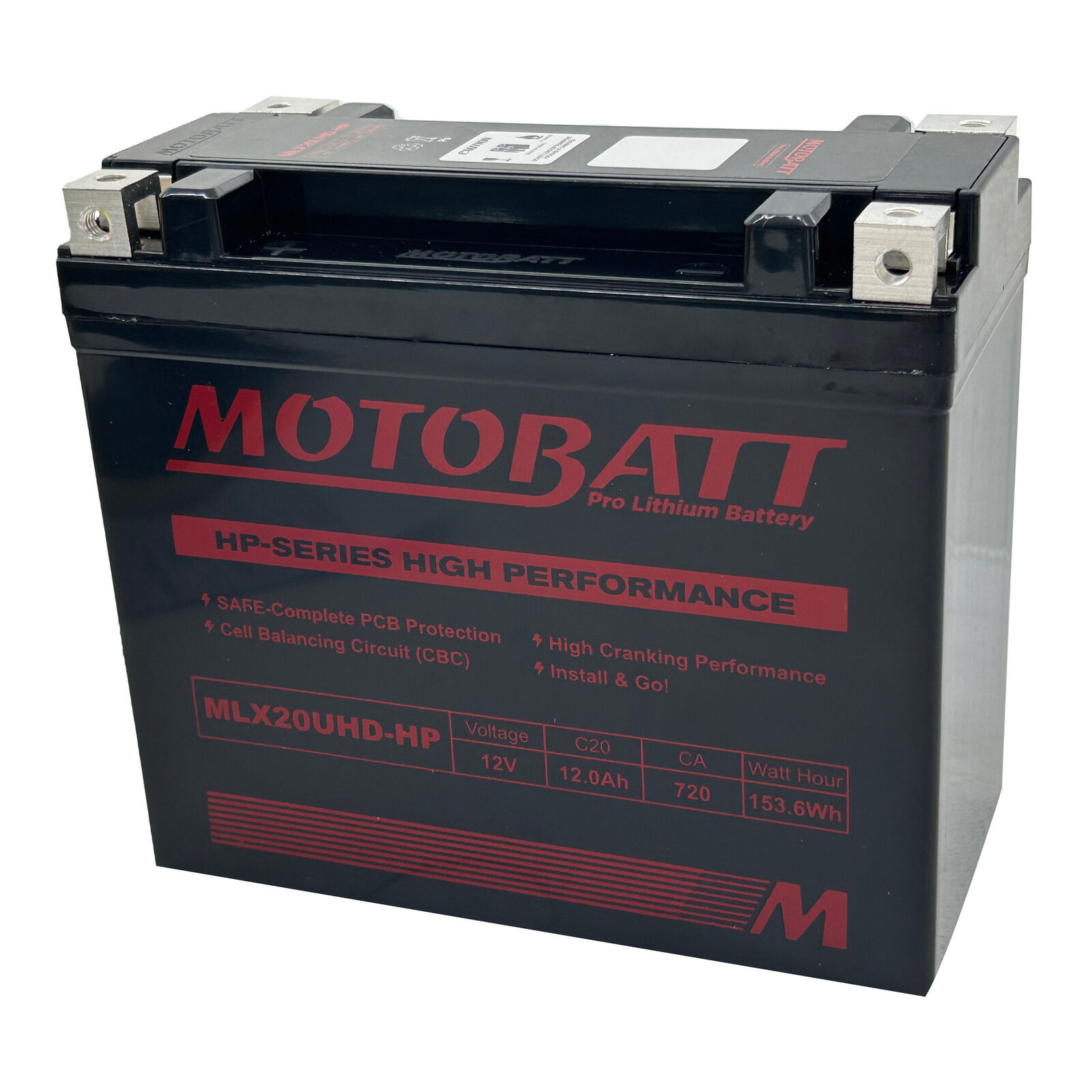

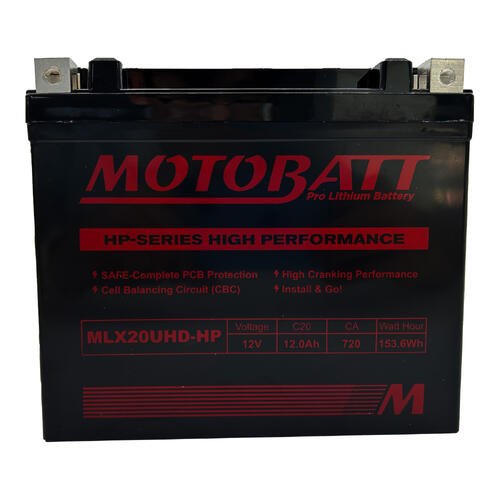

Motobatt Lithium Battery
Motobatt Pro Lithium HP Series battery offers complete overcharging over- discharging temperature protection and cell balancing capability to provide maximum performance protection and safety to the battery.
Features:
- Dynamic Cell Balancer: Optimizes each cell voltage to maximum.
- Over-Charge Protection: Prevents the machine or charger from overcharging the battery; cut off at 15.4V.
- Under Discharge Protection: Prevents the battery from being overdischarged to premature failure; Cut off at 8V
- Thermal Protection.: Temperature sensor shuts down before dangerous temperatures can occur; Cut off at 75°C
- Reactivation: Can be reactivated from shutdown with Motobatt PDCFB Charger or any charger that starts from 0 volts.
- Performance: Designed for performance rides.
Specifications:
- Battery Type: MLX20UHD-HP Pro Lithium Lifepo4
- Voltage: 13.2V
- Capacity: 12A
- CCA: 720
- Weight: 3.06Lbs (1.39KG)
- Dimensions (in / mm):
- L: 6.89 (175)
- W: 3.43 (87)
- H: 6.10 (155)
- TW: 3.94 (100)
- TH: 6.89 (175)

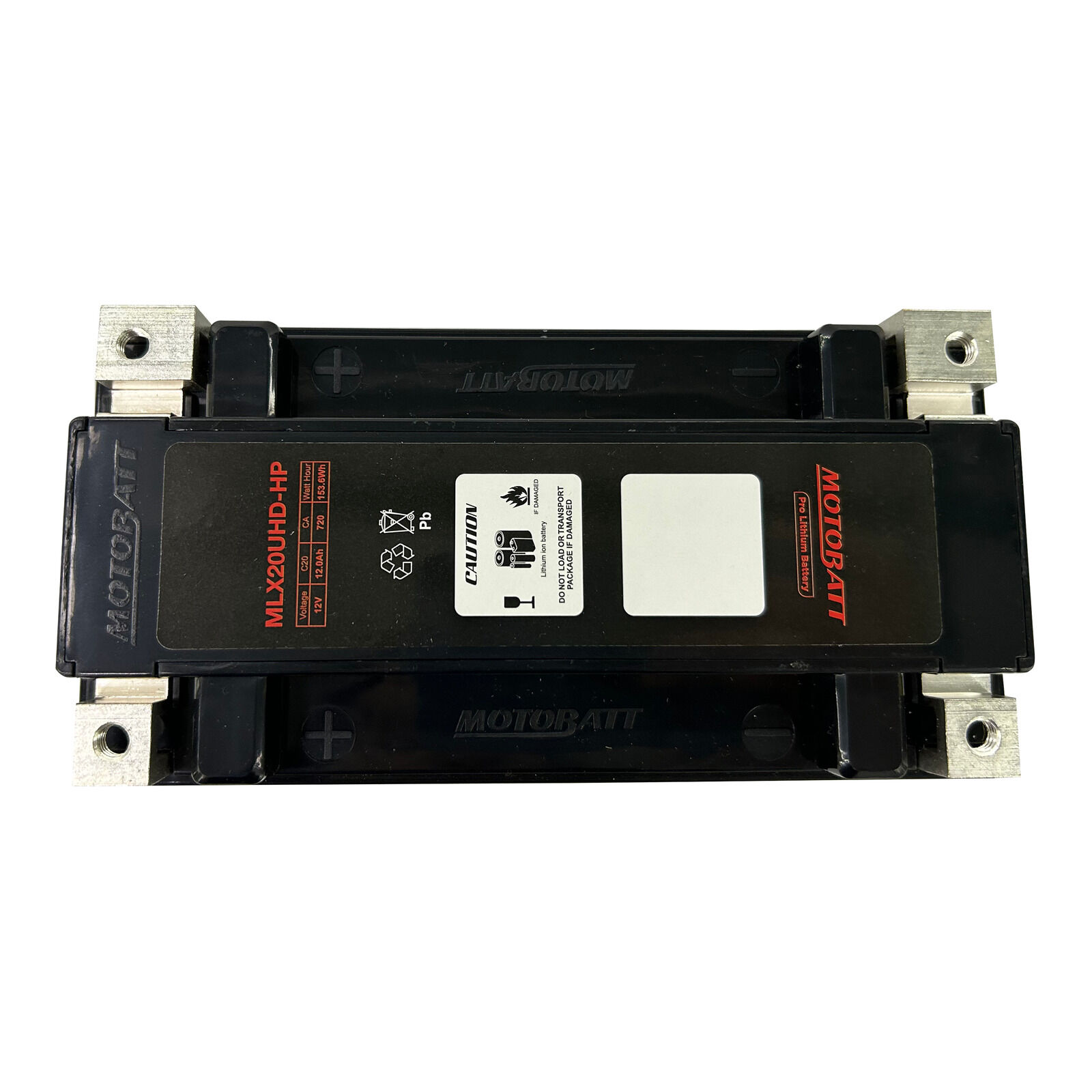

- Assembly Figure Terminal Locations: 4
- Terminals: 4 Fixed HD Compatible
- Screws: 2 M6X10 (Part#2xMPS3)
- Spacers:
- 1x 175x87x20 mm Height Spacer Pt (EVA7)
- 1x 170x115x15 mm Width Spacer Pt (EVA8)
Fitment Details
- Yamaha XVZ1300 ROYAL STAR 1997
- Yamaha XVZ1300 ROYAL STAR 1998
- Yamaha XVZ1300 ROYAL STAR 1999
- Yamaha XVZ1300 ROYAL STAR 2000
- Yamaha XVZ1300 ROYAL STAR 2001
- Yamaha XVZ1300 ROYAL STAR 2002
- Yamaha XVZ1300 ROYAL STAR 2003
- Yamaha XVZ1300 ROYAL STAR 2004
- Yamaha XVZ1300 ROYAL STAR 2005
- Yamaha XVZ1300 ROYAL STAR 2006
(WHI_MBLX20UHDHP_3165)
| SKU | WHI_MBLX20UHDHP_3165 |
| Barcode # | MBLX20UHDHP |
| Brand | Motobatt |
| Shipping Weight | 1.3900kg |
| Shipping Width | 0.110m |
| Shipping Height | 0.180m |
| Shipping Length | 0.180m |
