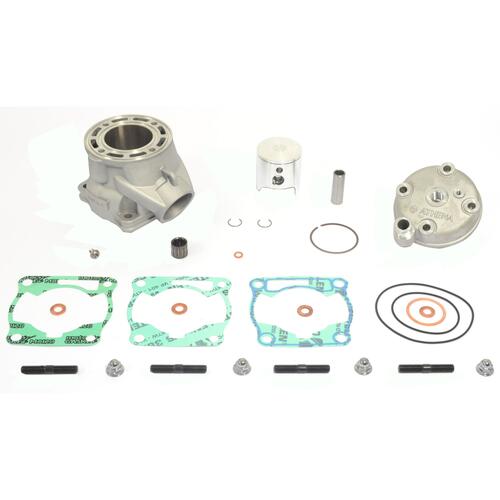

Yamaha YZ85 2002 - 2018 Athena Piston, Gaskets & Cylinder Kit 53mm / 105Cc Big Bore

Athena Cylinder Piston & Gasket Rebuild Kit - Yamaha YZ85 105cc Kit 2002 - 2017

Big Bore Cylinder Kit (105cc) designed for Yamaha`s smallest MX model. This kit and requires the bottom cases to be modified. Completely redesigned, the cylinder has been developed to increase horsepower while maintaining long term reliability. Features include - 25% increase in piston surface, expanded intake port, unique 2 stage booster exhaust port (eliminating the bridged port) and a larger water jacket for superior cooling.

Technical Information:

• Cylinder Bore:  Athena 53 mm (OEM  47.5 mm)
• Stroke:  Athena 47.8 mm   (OEM 47.8 mm)
• Displacement:    Athena 105 cc    (OEM 84.7 cc)
• Compression Ratio:    Athena 13.8:1   (OEM 8.2:1)
• Power at the Rear Wheel:    Athena 18.1 kw / 24.2 hp / 11200 rpm  (OEM 15.7 kw / 21.0 hp / 11300 rpm)

Features:

• Aluminum cylinder with nickel-carbide coating
• Complete piston kit, rings, circlips
• Complete top end gasket kit
• Easy to follow step-by-step installation instructions
• We recommend this kit to be fitted by a qualified mechanic

Fitment Details

• Yamaha YZ85 2002
• Yamaha YZ85 2003
• Yamaha YZ85 2004
• Yamaha YZ85 2005
• Yamaha YZ85 2006
• Yamaha YZ85 2007
• Yamaha YZ85 2008
• Yamaha YZ85 2009
• Yamaha YZ85 2010
• Yamaha YZ85 2011
• Yamaha YZ85 2012
• Yamaha YZ85 2013
• Yamaha YZ85 2014
• Yamaha YZ85 2015
• Yamaha YZ85 2016
• Yamaha YZ85 2017
• Yamaha YZ85 2018
