Yamaha YZF R1 2005 - RMSTATOR Flywheel & Gasket Kit

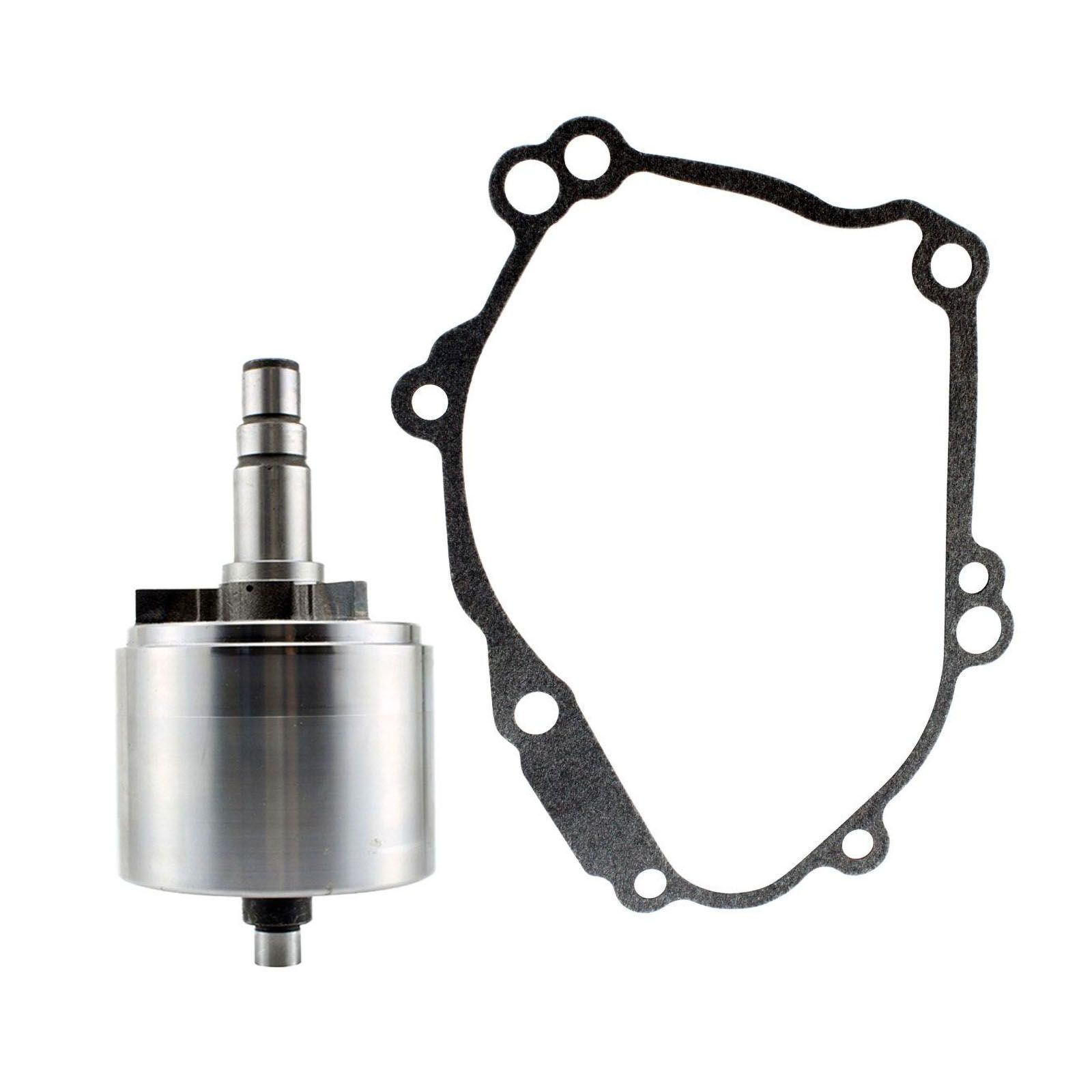

RMSTATOR FLYWHEEL & GASKET KIT

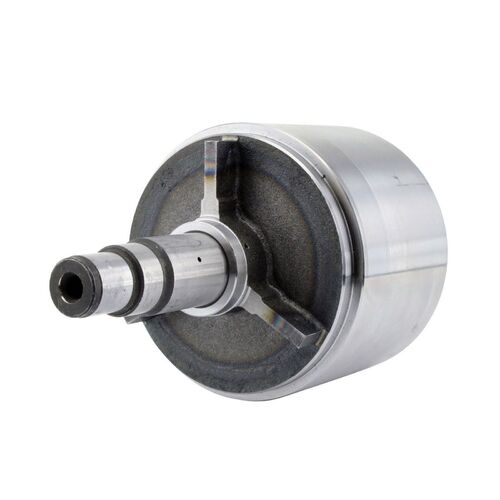

New RMSTATOR heavy-duty flywheel rotor for Yamaha Motorcycles is a well-priced solution to problems with the OEM flywheel, and an excellent alternative to all the mechanical troubles you can encounter with a repair.

• Built to OEM size: Fits precisely in your ride: install it and forget it.
• Improved epoxy: Uses high-temperature epoxy that is stronger than OEM, eliminating the possibility of magnet detachment.
• High-grade steel capping: Prevents heat and friction from degrading the epoxy attaching the magnets. Though extremely unlikely, if a magnet did ever come loose, it would remain in the sleeve preventing contact with the stator.
• Precise balancing: Eliminates crankshaft vibrations for longer engine longevity.
• Shop with confidence: Two years warranty. All products are tested.

Don't waste time with temporary solutions, and start fixing your ride like a pro!

FLYWHEEL SPECS:

• Exterior Diameter: 80 mm
• Interior Diameter: 69 mm
• Interior Diameter Center Housing: 12 mm
• Exterior Diameter Center Housing: 18 mm
• Thickness (exterior): 11 mm
• Thickness (interior): 6 mm

The diameter of the Shaft largest to the narrowest:

• 26 mm
• 20 mm
• 18 mm
• 15 mm

PLEASE NOTE:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Fitment Details

• Yamaha YZF-R1 2005
